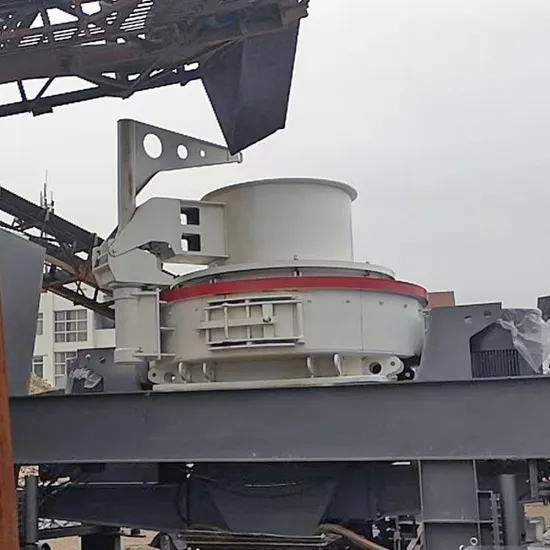

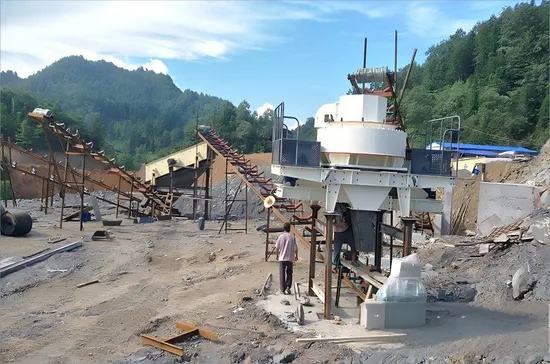

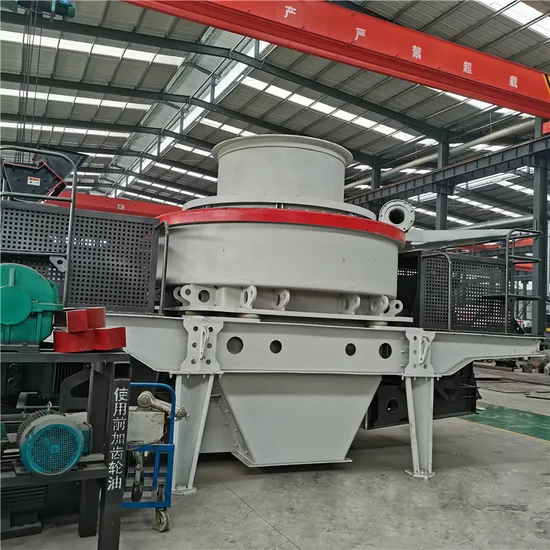

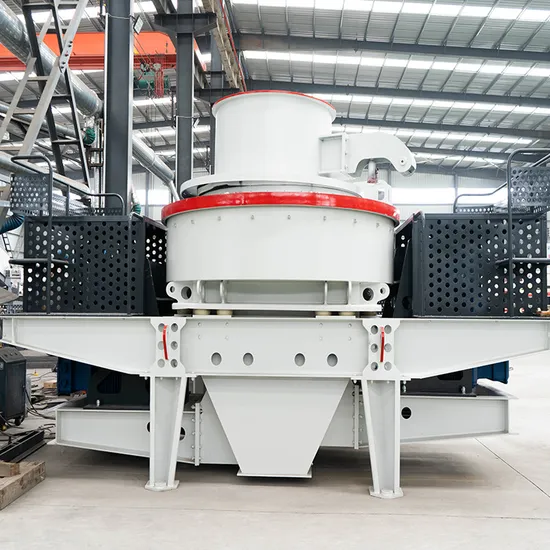

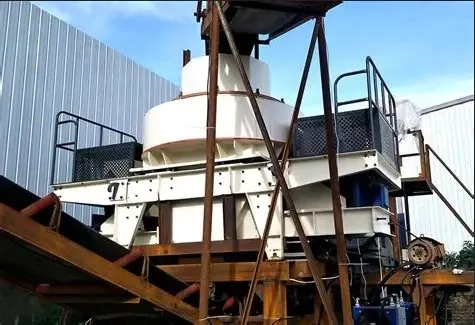

High-performance VSI impact crusher for producing high-quality sand and gravel aggregates in construction, mining, and metallurgy.
Utilizes a high-speed impeller rotating at up to 1510 RPM to achieve efficient material crushing and shaping through high-velocity impact.
Features a core impeller with diamond combination impact blocks, providing 3-5 times higher wear resistance than traditional manganese steel.
Equipped with an advanced thin oil lubrication station with automatic safety shut-offs for oil flow and pressure, ensuring continuous operation.
Integrated vibrating sensor with an inspection scope of 0.1-20mm/s for real-time operational monitoring and enhanced safety.
Engineered for processing hard materials like granite and quartz, as well as softer materials such as limestone, for versatile applications.
The complete unit is CE certified, ensuring compliance with rigorous international safety and quality standards.
Model: VSI-9526
Capacity (Cascade and Center Feeding): 300-380 t/h
Max Feeding Size (Hard Material): ≤40 mm
Rotation Speed: 1360-1510 rpm
Power of the Double Motors: 264-320 kw
Overall Weight: 16 t
